Bombas RH

MONOBLOCK 25-LM


Bombas  /  Bombas de Engranajes  /  Serie ECO - Monobloc



MONOBLOC 25-LM

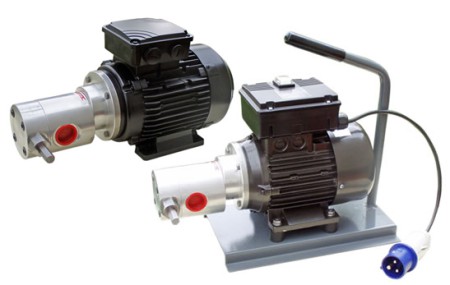

Very compact, lightweight and economical duralumin gear pumps, suitable for all types of oil, grease and gas oil transfer; Coupled to motor in monobloc version (can be three-phase or single-phase).
  • MONO-25

    2 VERSIONS:
    MONO-25 to 1500RPM MONO-25 to 3000RPM
    • Flow rate: 25  liters/minute at 1500 rpm.
    • Aspiration: self-priming of 3 meters.
    • Pipes required: 1” Gas.
    • Maximum pressure: 10 Bars.
    • Maximum temperature: 70ºC.
    • Flow rate: 45  liters/minute at 3000 rpm.
    • Aspiration: self-priming of 3 meters.
    • Pipes required: 1,1/4” Gas.
    • Maximum pressure: 10 Bars.
    • Maximum temperature: 70ºC.
MONOBLOCK 25-LM
